Quick Overview

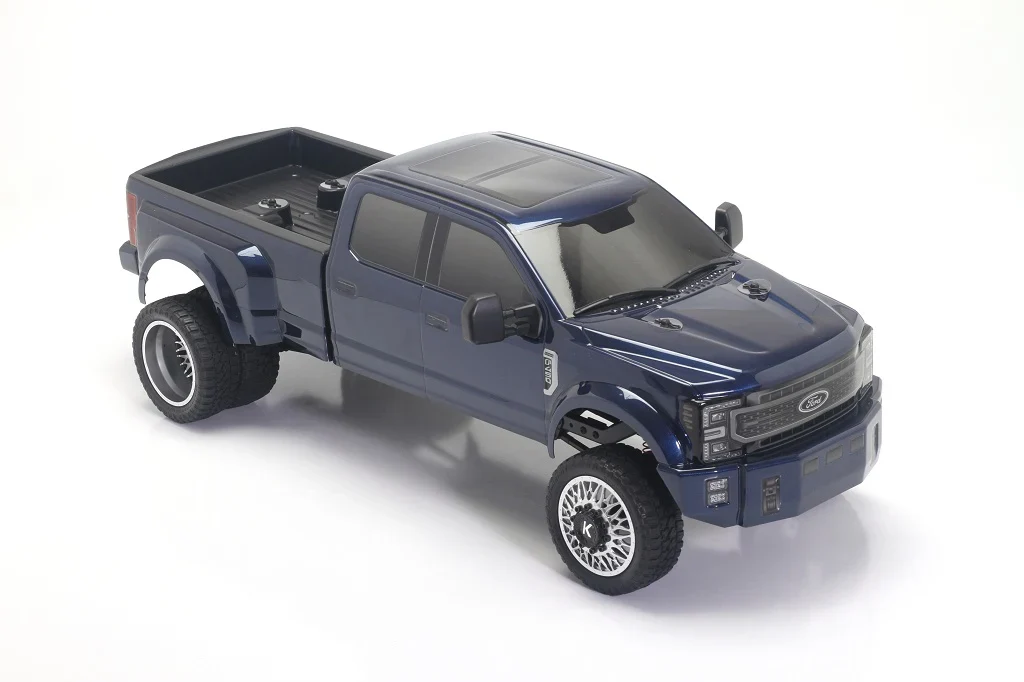

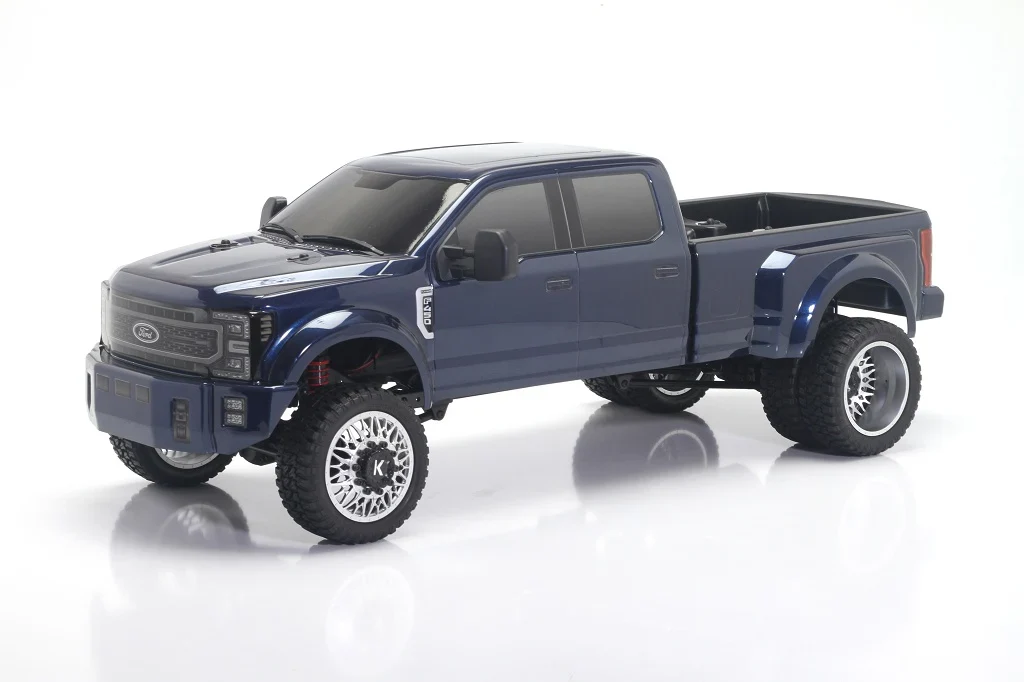

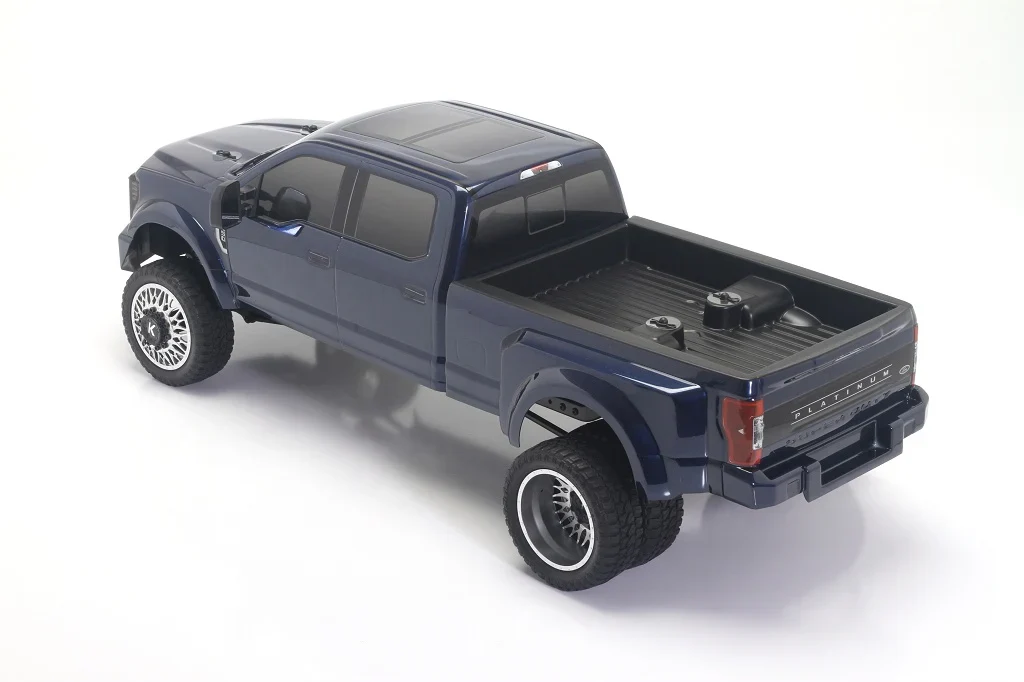

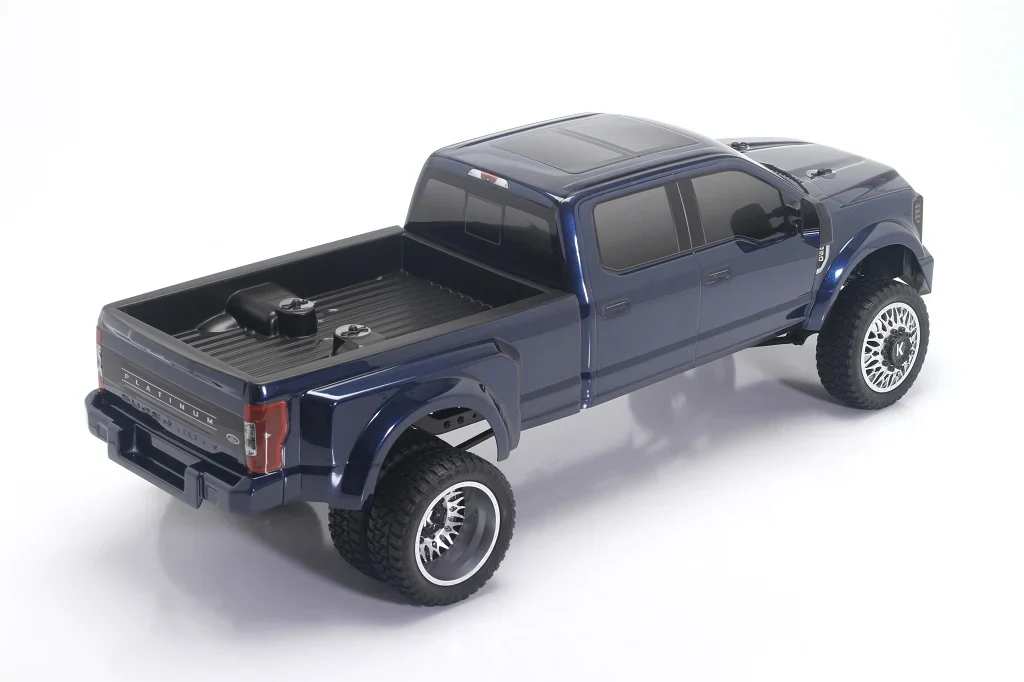

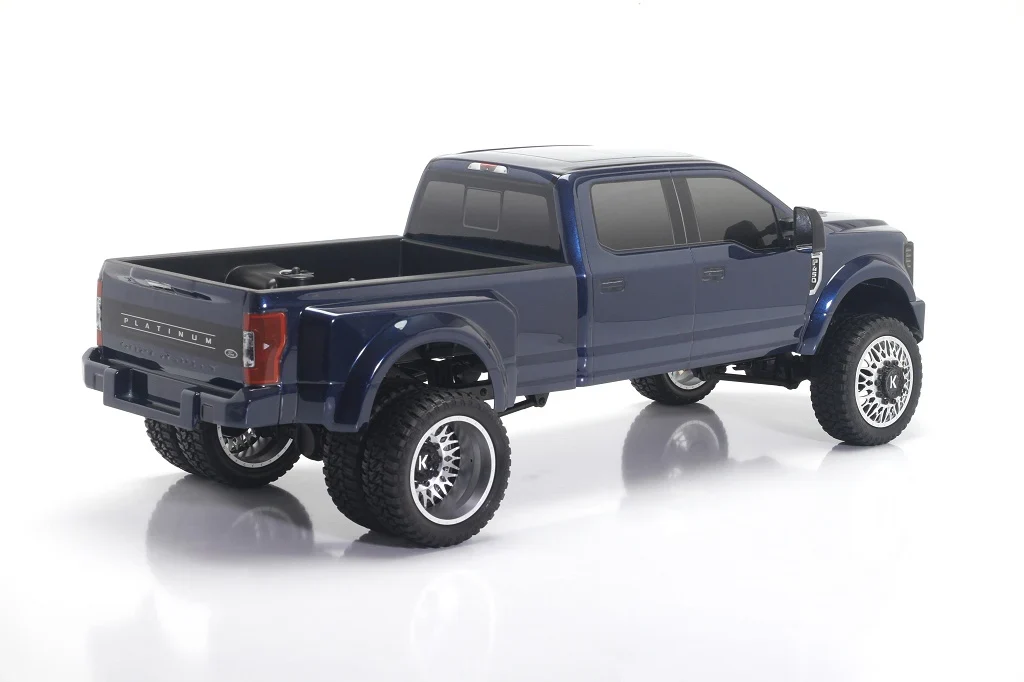

CEN Racing official Licensed FORD F450 SD KG1 Wheel Edition 1/10 4WD RTR (Blue Galaxy) Custom Truck DL-Series.

True 1/10 scale RTR. Body length 26.7 inch (678.18mm) true body scale truck.

Item: 8989 - KG1 Red Candy Apple
Item: 8988 - KG1 Silver Mercury

Item: 8986 - KG1 Blue Galaxy
Item: 8987 - KG1 Grey Titanium

* KG1 FORGED Trident-D wheels.  Front 35mm, Rear 31mm per wheel

* REALISTIC textured bed linear coating

* 90mm Aluminum pewter anodized shock housing

* Black Anodized lower and upper links

* RED anodized shock springs

ESC-40A WP-1040-Brushed (Powered by HobbyWing):

• Water-proof and dust-proof for all weather
• Built-In Capacitor Module
• Automatic throttle range calibration
• Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery
• Over-Heat protection and throttle signal loss protection
• Easily programmed with jumpers

Motor-RS-550 high Torque Motor - Power By Mabuchi Motor

Servo -12Kg Servo O.E.M. by Savox:

• 4.8V 0.26 sec/60deg 10.0 kg-cm
• 6.0V 0.23 sec/60deg 12.0 kg-cm
• 25T Horn Gear Spline

Radio System:

• Pistol-Grip AMP 30 3 Channel Transmitter
• Digital Trimming
• Steering Dual-Rate (ST D/R) Adjustment
• End Point Adjustment (EPA)
• Built in Failsafe

Chassis:

- Steel Frame Rails
- CMS (Chassis Mounted Servo) Chassis Design
- Stamped Steel Shock Hoops
- Steel Skid Plate
- Full Precision Ball Bearing Support
- Adjustable Turnbuckles
- High Torque Servo Horn Safer

Suspension:

- 3 Links Suspension with Panhard Bar Design

- Aluminum shock housing

- Big Bore Oil Filled Adjustable Coil Over Shocks
- Harden Steel Steering Drag Link
- 6mm Aluminum Linkage

- 90mm shock housing

Drivetrain:

• Sway bar included
• 4 Wheel Drive
• Center Shaft Drive Train for more power transferred to the wheels
• Highly Efficient Transmission System
• Wide Range Easy Changeable Gear Box Design
• Sealed transmission eliminates dirt and dust
• Sealed Axle housing
• 5mm Hardened Steel Axle shaft
• Differential Center Locker Front/Rear Planetary Gear Type
• Metal Transmission Gears

• Planetary Gear type Differential

Specs:

Length: 26.70inch (678.18mm)
Width: 11.41inch (290mm)
Wheelbase: 17.60inch (447mm)
Ground Clearance: 2.52inch (64mm)
Weight: 2.51 lb. 2.5kg

Battery:

Battery and Charger not included

Recommended 2s Lipo
