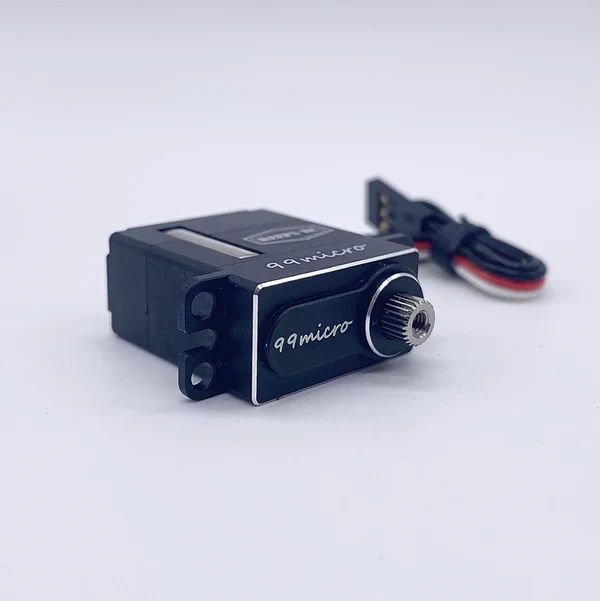

REEFS RC 99 Micro Servo
NOTE: Not recommended for use on the Mini-B or Mini-T.
SPECIFICATIONS:
- High Torque High Speed Micro Servo
- WATERPROOF : Voltage 6v-8.4v
- Internal: Precision Metal Gears / All CNC Alum. REEFS Case
- Bearing Type: 2BB /Weight: .70oz / Dimension: .90 x .47 x 1.08 (LWH)
- Torque: 89oz @ 6.0v / 99oz @ 7.4v / 115oz @ 8.4v
- Speed: .11sec @ 6.0v / .09sec @ 7.4v / .08sec @ 8.4v
- Spline: 25T Micro / Dead Band Width: 2¦Ìs / BEC Not Required
Unload Current
- 200mA @ 4.8V
- 350mA @ 6.0V
- 450mA @ 7.4V
- 550mA @ 8.4V
Loading Current (Max Stall Current)
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
NOTE: Not recommended for use on the Mini-B or Mini-T.
SPECIFICATIONS:
- High Torque High Speed Micro Servo
- WATERPROOF : Voltage 6v-8.4v
- Internal: Precision Metal Gears / All CNC Alum. REEFS Case
- Bearing Type: 2BB /Weight: .70oz / Dimension: .90 x .47 x 1.08 (LWH)
- Torque: 89oz @ 6.0v / 99oz @ 7.4v / 115oz @ 8.4v
- Speed: .11sec @ 6.0v / .09sec @ 7.4v / .08sec @ 8.4v
- Spline: 25T Micro / Dead Band Width: 2¦Ìs / BEC Not Required
Unload Current
- 200mA @ 4.8V
- 350mA @ 6.0V
- 450mA @ 7.4V
- 550mA @ 8.4V
Loading Current (Max Stall Current)
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
$59.99
REEFS RC 99 Micro Servo—
$59.99
Description
NOTE: Not recommended for use on the Mini-B or Mini-T.
SPECIFICATIONS:
- High Torque High Speed Micro Servo
- WATERPROOF : Voltage 6v-8.4v
- Internal: Precision Metal Gears / All CNC Alum. REEFS Case
- Bearing Type: 2BB /Weight: .70oz / Dimension: .90 x .47 x 1.08 (LWH)
- Torque: 89oz @ 6.0v / 99oz @ 7.4v / 115oz @ 8.4v
- Speed: .11sec @ 6.0v / .09sec @ 7.4v / .08sec @ 8.4v
- Spline: 25T Micro / Dead Band Width: 2¦Ìs / BEC Not Required
Unload Current
- 200mA @ 4.8V
- 350mA @ 6.0V
- 450mA @ 7.4V
- 550mA @ 8.4V
Loading Current (Max Stall Current)
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
