Get the Free 3D-Printed Servo Mount for the HobbyPlus Speck-SCT

7g super light weight with full CNC machining case, 8mm compact size allow to suit for more models with space and weight requirements. 2S wide voltage which produce 3KG high torque and 0.052Sec super spec at 8.4V. Bring different driving feel for the mini car with this tiny size servo. Durable titanium gear and 20T spline provide higher precision in operation.

Feature

High Quality Coreless Motor

High Accuracy Titanium Gear

Ultra Light Weight Mini Z Servo

Fast Cooling CNC Aluminum Case

2S 8.4V High Voltage Compatibility

Design for Mini Z cars 1/27, 1/28 Scale Cars such as GL Racing GLD, GLA V2.1, GLR, GLF-1, GLR GT, Losi Micro-B (highly recommend)

Specification

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec/60°@4.8V

Operating speed: 0.066sec/60°@6.0V

Operating speed: 0.058sec /60° @ 7.4V

Operating speed: 0.052sec /60° @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

Motor: Coreless

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Weight: 7g

Connector Wire: JR Female

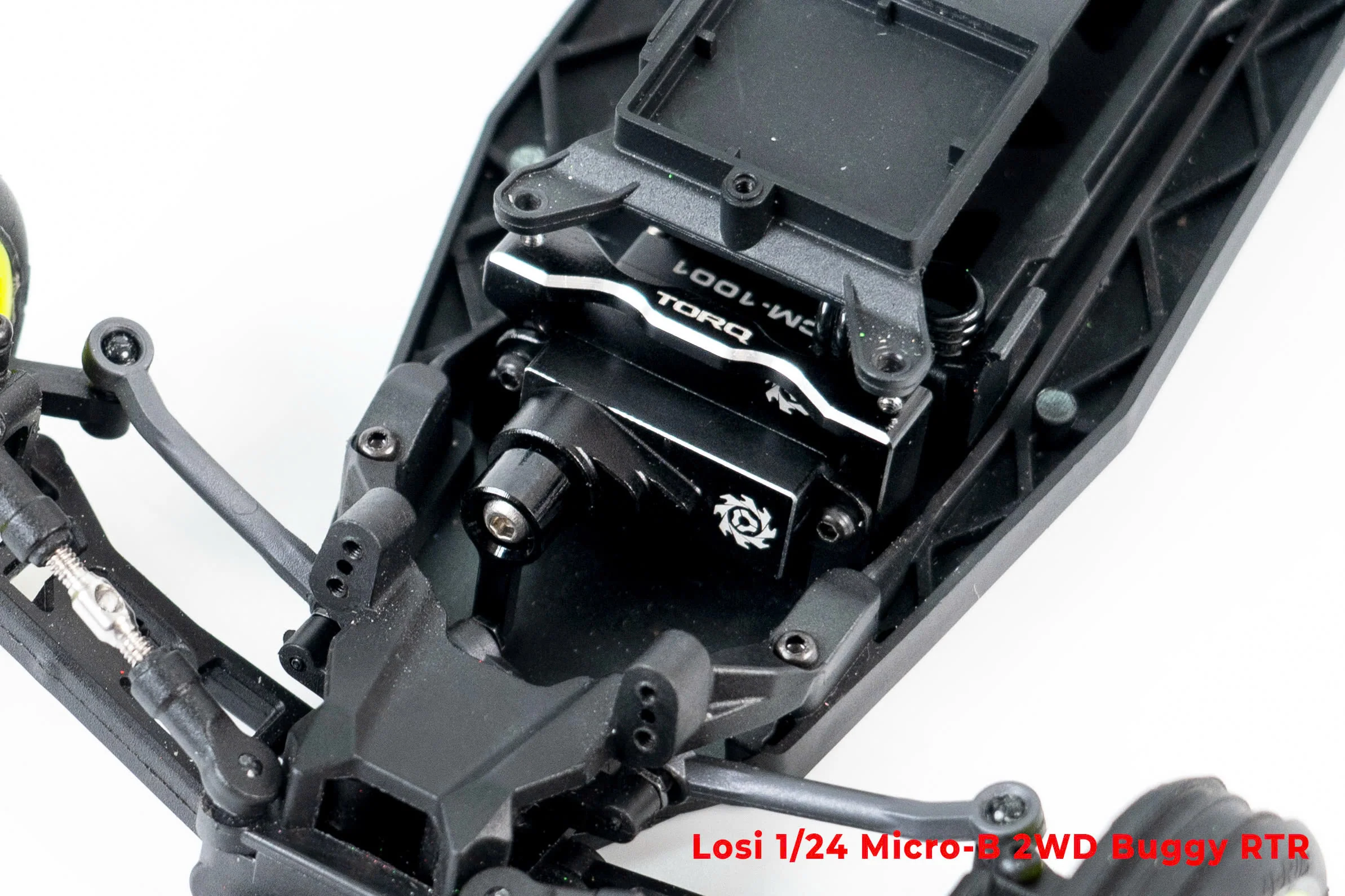

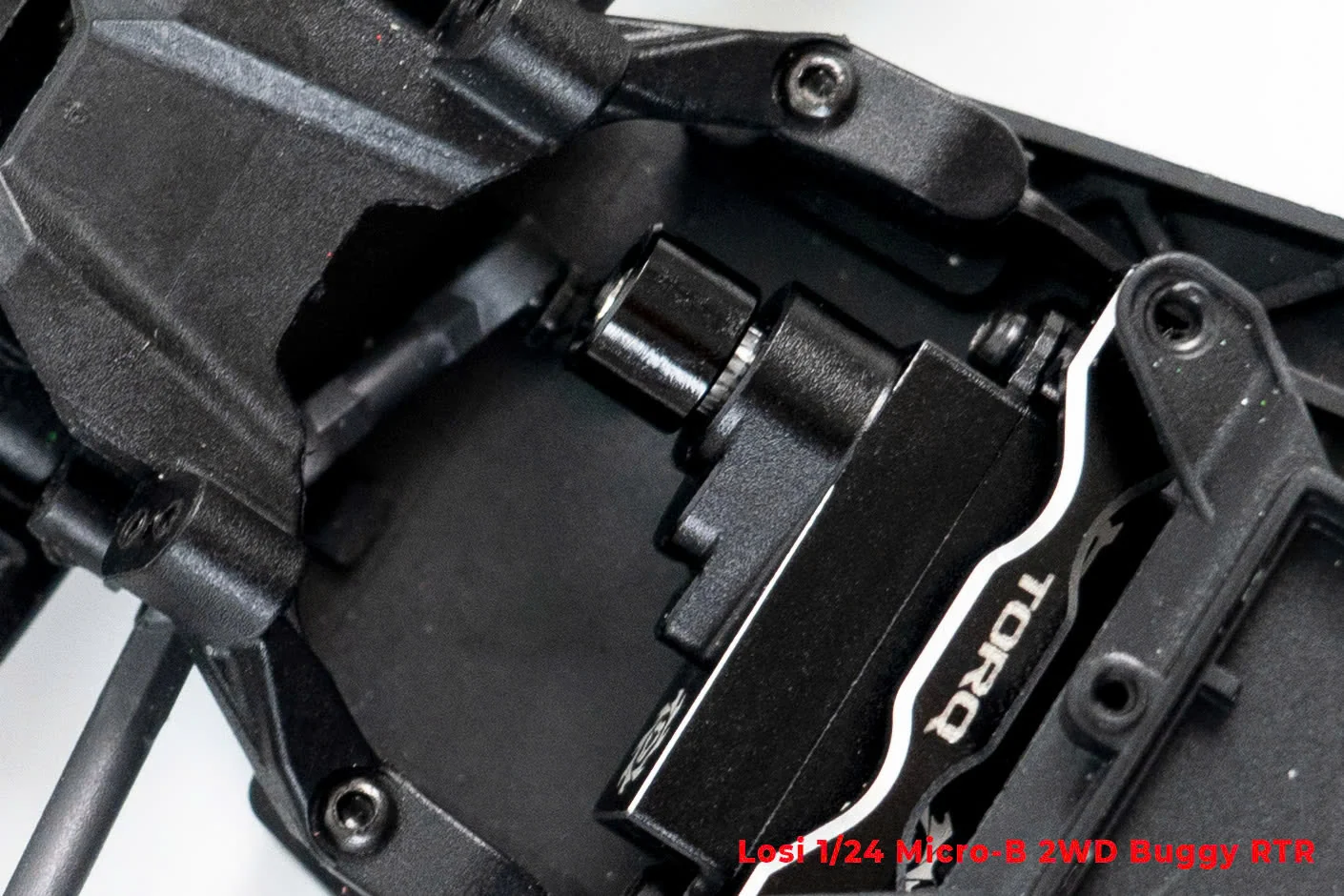

To ensure the best performance with your LOSI Micro-B, 3D printed servo mount ( File attached and FREE for download) or TORQ CNC TSP-1003 aluminium servo mount is neccessary

Losi Micro-B servo mount design
